Basics
Healthy Human Population
Drinking Water
Indicator
Nitrate concentration in source water
Vital Sign Indicator
Percent (%)
/

No targets are currently set for this indicator.

Sheryl Howe
Contributing Partners
Last Updated
6/21/2022 3:30:39 PM
Map
Average annual nitrate concentration in raw groundwater sources to Group A systems across Puget Sound between 2012-2021. Map shows where the average nitrate concentrations were below 2 mg/L, between 2-5 mg/L, between 5-10 mg/L, and above 10 mg/L. The five Group A systems that treat for nitrate are shown as red triangles. Please note that the average concentration is for data available by water source over the 10-year period; see Interpretation of Results for more information.
Description
This indicator measures the ecosystem’s ability to provide clean drinking water by tracking the concentration of nitrate in groundwater, before water enters public drinking water systems (raw groundwater, pre-treatment). Nitrate occurs naturally in groundwater but is also a widespread chemical that can cause adverse health effects if consumed in too large amount. The detection of elevated concentrations of nitrate may help identify areas that are at greater risk of groundwater contamination.
Vital Sign Indicator Chart

Annual nitrate concentration (mg/L) in groundwater sources for Group A systems across Puget Sound (2011-2021). The yellow boxes illustrate the middle 50% of the concentration values, showing the first quartile (25th percentile), median (center), and third quartile (75th percentile). Whiskers are drawn to the 10th and 90th percentile; points outside the whisker boundaries represent outlier values. Blue reference lines are drawn at 2, 5 and 10 mg/L to show regulatory and health thresholds. Nitrate concentrations below 2 mg/L reflect levels found in natural groundwater. Concentrations above 2 mg/L indicate human activities contribute to contamination. When concentrations exceed 5 mg/L the frequency of sampling increases to better monitor concentrations. 10 mg/L is the EPA's maximum contaminant level for nitrate.

Groundwater provides water to public drinking supplies for over half of the Puget Sound population. A variety of chemicals, including nitrate, can pass through the soil and potentially contaminate groundwater. Nitrate comes from nitrogen, and is found in most inorganic fertilizers, animal manure, and liquid waste discharged from septic tanks. Rain or irrigation water can carry nitrate down through the soil into groundwater where it can persist for years. The detection of elevated concentrations of nitrate may also be an indication of conditions (well depth and surficial geology, for example) that make groundwater more vulnerable to contamination, beyond nitrate, from activities at the land surface (Tesoriero and Voss, 1997).

Most groundwater in Puget Sound is not contaminated by nitrates, however, it is a concern because contaminated drinking water can cause serious health risks, especially in infants. When ingested, nitrate can cause low oxygen levels in the blood which can lead to a potentially fatal condition known as methemoglobinemia or “blue baby” disorder. For this reason, public water systems carefully monitor nitrate levels in source water and treat the water when necessary. Nitrate is not removed by conventional drinking water treatment processes; its removal requires additional, relatively expensive treatment units.

Key Vital Sign Indicator Results
  • The vast majority of Puget Sound residents get their drinking water from public water supply systems. Nearly 98% of the Puget Sound population is served by large systems known as Group A water systems, which have more than 14 connections or serve 25 or more people 60 or more days per year; over half of these people receive water sourced primarily from groundwater supplies.
  • Nitrates occur naturally in groundwater but are also found in fertilizers, animal manure and waste from septic systems, which may greatly increase nitrate concentration in groundwater. If consumed in too large amount, nitrates pose a health risk. The Safe Drinking Water Act nitrate limit for delivery of water from public water systems, set to protect against adverse health effects, is 10 mg/L.
  • Most groundwater in Puget Sound is not contaminated by nitrates. Across Puget Sound, the average concentration of nitrate in source groundwater (pre-treatment) remained at low levels from 2011 to 2021. Concentrations of nitrates above 2 mg/L in groundwater supplies indicate human activities are the source of the contaminant (Nolan et al., 1998). Regionally, the annual median concentration ranged from 0.25 to 0.50 mg/L meaning that the majority of groundwater sources to public water systems do not show signs of human caused nitrate pollution (see Interpretation of Results). Less than 15% of groundwater samples collected each year have nitrate concentrations above 2 mg/L.
  • In most years, only 2% of groundwater samples exceed 5 mg/L. For these water sources, samples are taken more frequently to ensure concentrations stay “regularly and consistently” below 8 mg/L.
  • If nitrate concentrations exceed 10 mg/L, the system must notify customers and install expensive treatment systems in order to provide clean water to the public. Five Group A water systems in Puget Sound treat water for nitrate contamination: four in Whatcom County and one in Island County.
  • Whatcom and Island counties had a higher proportion of groundwater samples with nitrate concentrations above 5 mg/L relative to other Puget Sound counties. Widespread and decades-long nitrate contamination, primarily from manure applied to crops and fertilizers, has been well documented in northwestern Whatcom County groundwater. Education and outreach is ongoing in this county to address nitrate pollution. Potential areas to watch for increasing nitrates are in Clallam, Pierce, and Thurston County.
Methods
Monitoring Program

Washington State Department of Health Office of Drinking Water

Data Source

Washington State Department of Health, Water System Data Sentry Database

Group A water systems regularly serve 15 or more connections or 25 or more people per day for 60 or more days per year. These systems are regulated by DOH under the Safe Drinking Water Act. State law requires Group A public water systems to sample for many contaminants, including nitrate, on a regular basis. In Washington, the drinking water quality standard for nitrate is 10 mg/L. Group A systems are required to sample each source of water annually for nitrate. If the nitrate concentration in a sample exceeds 5 mg/L, the frequency of sampling is increased to quarterly. If the data show the system is “regularly and consistently” below 8 mg/L in that year of sampling, the system can return to annual sampling. If the nitrate concentration exceeds 10 mg/L, the system must notify customers and treat the water. Nitrate is not removed by conventional drinking water treatment processes; its removal requires additional, costly treatment units. Public water supply systems that test too high for nitrate may also blend water from multiple sources so that the contamination level is below the regulated limits. Blending is strictly regulated by the WDOH and requirements include daily checks and monthly lab analyzed samples for nitrate (WA Nitrate Prioritization Project). Nitrate data from Group A systems are available in the Sentry database.

Group B systems have 3 to 14 service connections and serve less than 25 people per day, or serve 25 or more people per day during fewer than 60 days per year. DOH and local health jurisdictions share administrative responsibilities for these systems and responsibilities vary by county. Depending upon which county it is in, a Group B source may only have one nitrate data point in Sentry. Consequently, annual data is not consistently available for all Group B systems. Therefore, the nitrate concentration in source water indicator focuses on data collected annually by Group A water systems and does not report on nitrate data for Group B systems.

The Sentry database was queried for nitrate analytical results for Group A systems with groundwater sources in watersheds that drain to the Puget Sound. This geographical scope covers 12 counties, however, groundwater sources in Clallam and Jefferson County were excluded where they extend beyond the Puget Sound basin. Annual nitrate data is summarized for the Puget Sound region and by county beginning in 2011. For systems taking more than one annual sample (e.g., quarterly samples), the median value for that year was used for analysis.

Critical Definitions

Group A water systems have 15 or more service connections or serve 25 or more people 60 or more days per year. They are regulated by the state.

Group B public water systems serve fewer than 15 connections and fewer than 25 people per day. They are regulated by the state during the initial design phase and by local health jurisdictions after that. Private wells serve a single residence and are regulated by local health jurisdictions.

Interpretation of Results

Nitrate concentrations in groundwater above 2 mg/L are generally the result of anthropogenic activities (Nolan et al., 1998). Nitrate comes from nitrogen, and is found in most inorganic fertilizers, animal manure, and liquid waste discharged from septic tanks. Rain or irrigation water can carry nitrate down through the soil into groundwater where it can persist for years.

Across Puget Sound, the average concentration of nitrate in source groundwater (pre-treatment) remained at low levels from 2011 to 2021. Regionally, the annual median concentration ranged from 0.20 to 0.50 mg/L meaning that the majority of groundwater sources to public water systems do not show signs of human caused nitrate pollution.

The percentage of groundwater samples that exceed regulatory and health thresholds varies by county. Between 2012 and 2021, Thurston County had the highest percentage of samples with nitrate concentrations above 2 mg/L (30%), followed by Island County (20%) and Pierce County (20%). Over the 10-year period, Whatcom County had the highest occurrence of samples exceeding 10mg/L.

Widespread and decades-long nitrate contamination, primarily from intensive agricultural practices combined with shallow depth to water and heavy rainfall that carries unused nitrate to the water table, has been well documented in northwestern Whatcom County groundwater (Carey and Cummings, 2012). The Washington Nitrate Priority Project has identified the Sumas-Blaine Aquifer in Whatcom County as a very high priority area based on the severity of nitrate contamination, population, and agricultural land use. Four Group A water systems treat for nitrate contamination and education and outreach is ongoing in this county to address nitrate pollution.

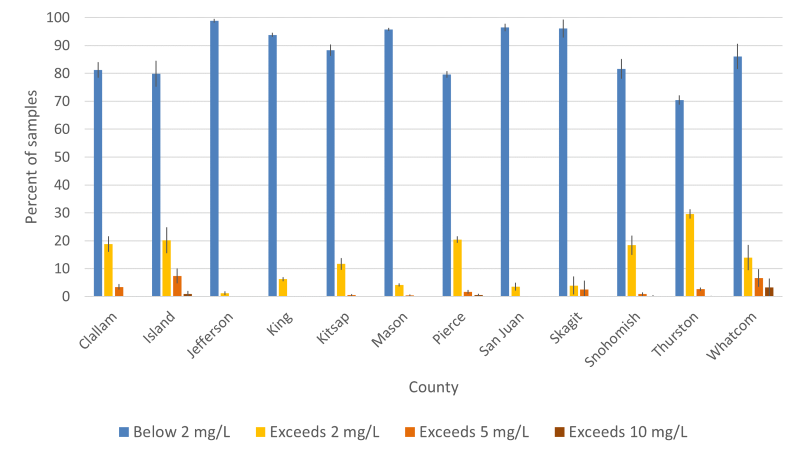

Percentage (10-year average, 2012-2021) of groundwater sources for Group A systems with mean annual nitrate concentrations below 2 mg/L and exceeding 2 mg/L, 5 mg/L, and 10 mg/L, by county. Dashed lines represent Puget Sound-wide averages; error bars represent the 95% confidence interval.
Bar chart of nitrate concentration in raw groundwater by Puget Sound county between 2012 and 2021.



The map at the top of this page shows the location of groundwater sources to Group A systems across Puget Sound. Each source is symbolized by the average (median) nitrate concentration from samples collected between 2012 and 2021. Not all water sources reported 10 years of samples. Most sources (52%) had at least 6 years of sample results in the Sentry database over the 10-year period.

Five Group A water systems in Puget Sound treat water for nitrate contamination: four in Whatcom County and one in Island County. Three locations, two in Whatcom County and one in Pierce County, show water sources with average nitrate concentrations above 10 mg/L that are not treated. These water sources have not been sampled since 2016 and are either currently inactive or designated as emergency wells only. Emergency wells are physically disconnected from their water system and are only reconnected when an emergency arises. Under that scenario, the source water is sampled for water quality, including nitrates, prior to reconnection and delivery.

Potential causes for indicator change may include changes in land use or agricultural practices, maintenance of septic systems, location and depth of wells, and regional water management approaches.

One of the underlying regional approaches for improving freshwater quality is to facilitate increased use or performance of best management practices (BMPs) in working/rural lands to reduce the impact of runoff from working lands. BMPs describe methods to manage land (e.g., agriculture, urban, or forest) and activities (e.g., use of fertilizers and manure management facilities) to mitigate pollution of nearby surface and groundwater.

DOH information on nitrate in drinking water

USGS Nutrients National Synthesis Project: Probability of Nitrate Contamination

Carey, B. and R. Cummings, 2012. Sumas-Blaine Aquifer Nitrate Contamination Summary. Washington State Department of Ecology, Olympia, WA. Publication No. 12-03-026. 57 pages.

Nolan, B.T., B.C. Ruddy, K.J. Hitt, and D.R. Helsel, 1998, A National look at nitrate contamination in ground water: Water Conditioning and Purification, v. 39, no. 12, p. 76–79.

Tesoriero, A.J, and F.D. Voss, 1997. Predicting the probability of elevated nitrate concentrations in the Puget Sound Basin: implications for aquifer susceptibility and vulnerability. Groundwater, v. 35, no. 6, p. 1029-1039.

Datasets

No datasets uploaded.

Reporting Guidance
Reporting Instructions
Subcategories
Name
Annual Median Sample
Below 2 mg/L, Exceeds 2 mg/L, Exceeds 5 mg/L, Exceeds 10 mg/L
